Quadri-telemetry🔗

This widget is very similar to the Telemetry widget, but it provides a 2 by 2 plot layout which is very convenient for example if you need to analyze a wheel data

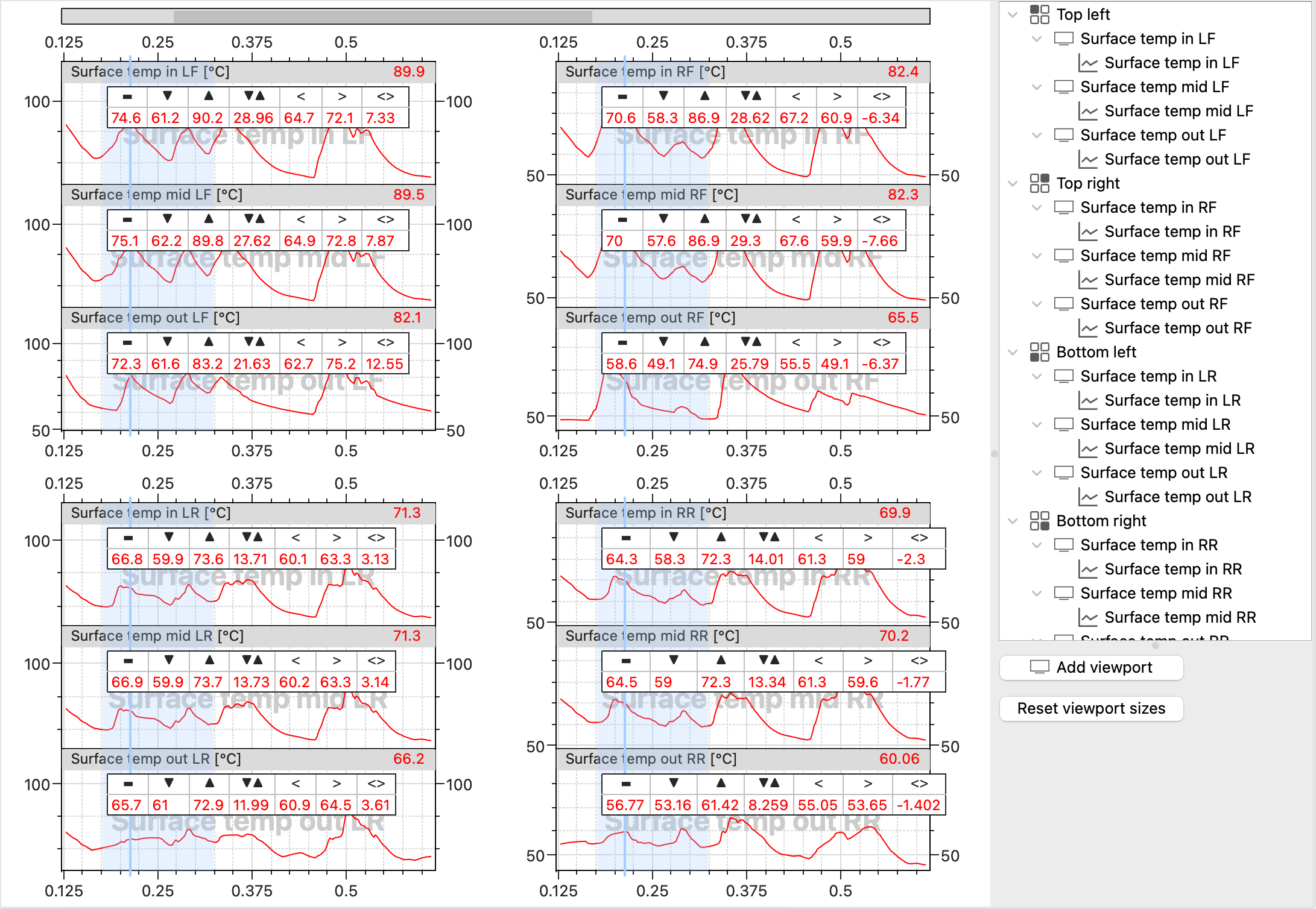

Quadri-telemetry widget

Adding channels🔗

To add a channel to Quadri-telemetry widget, you can add a new viewport and add a channel into this viewport. Click "Add new viewport" button on a telemetry widget control panel on the right and then drag-n-drop a channel you want to add from the Channel list.

If you hold Ctrl (Cmd on macOS) when dropping a channel into a telemetry widget, it will be added into a new viewport.

In general adding channels to Quadri-telemetry widget works the same way as adding channels to the regular Telemetry widget, except that here you can't add channels with double-click

Managing the tab🔗

For details on how to add channels and how to manage and set up the tab please refer to the Telemetry section of this doc. Cursor and selection also work the same way, except that they are also synchronized across all four plots in this tab.
